Kenmerken

Specificaties

Model Number: VS1

Product name: VCB

Standard: IEC62271

Electrical Life(Time): 10000times

Type: Vacuum

Poles Number: 3

Basis informatie

Model Number: VS1

Betalen & Verzenden Algemene voorwaarden

Packaging Details: Standred Export Wooden Carton

Supply Ability: 100 Unit/Units per Week

Productomschrijving

Product Description

Specification

Rated voltage		kV	12	24
Rated insulation level	Power frequency withstand voltage (1min)	kV	42/48	65/79
Rated insulation level		Lighting impulse withstand voltage (peak)	kV	75/85	125/145
Rated current		A	630-4000	630-3150
Rated short-time withstand current		kA	25-40	25-40
Rated peak withstand current		kV	63-100	63-100
Rated short-circuit breaking current		kA	25-40	25-40
Rated short-circuit making current		kA	63-100	63-100
Rated frequency		Hz	50	50
Secondary circuit rated short-time withstand voltage（1min）		kV	2	2
Secondary circuit rated voltage		V	DC110、220 / AC110、220	DC110、220 / AC110、220

Neem contact op

12e verdieping, blok D, ChangDai Street, Hengyang, Hunan, China

Over

Bedrijfsprofiel Fabrieksreis Kwaliteitscontrole Contacteer ons

Producten

Magnetische schakelaar micro- stroomonderbreker Motorcircuitbreaker Alle categorieën

Mail ons

Laat ons uw vereiste weten. We zullen de beste producten met u verbinden.

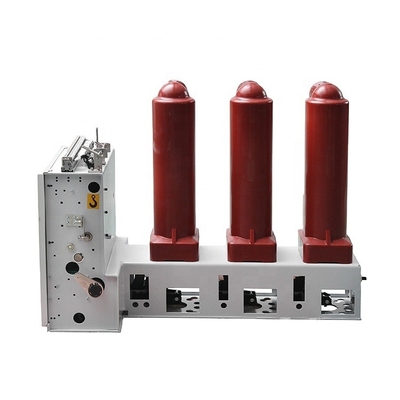

VS1 Series Vacuum Circuit Breaker Indoor Side Type 4000A VCB VS1
